LASC Microprocessor Based
Conductivity Level Controls
Lumenite® offers its patented auto sensitivity, self calibratingliquid level controls. The LASC series provides on/off pointsensing control with a unique self calibrating auto sensitivityfeature, eliminating all manual adjustment. When liquid reaches thesensing probe, a microprocessor algorithm determines the liquidresistivity and automatically sets the optimum control sensitivity.
Key Features
Auto-Sensitivity Feature automatically sets the unit to its optimum sensitivity without potentiometers
User Specified Programmed auto-sensitivity range
Available voltages: 12VDC, 24VDC, 110VAC, 220VAC
1, 2 or 3 SPDT relays for multiple on/off point switches or filling/emptying operations
Consult Lumenite® with your specific application requirements
Model: 201, 401, 601 Din-Rail Mount Standard Options

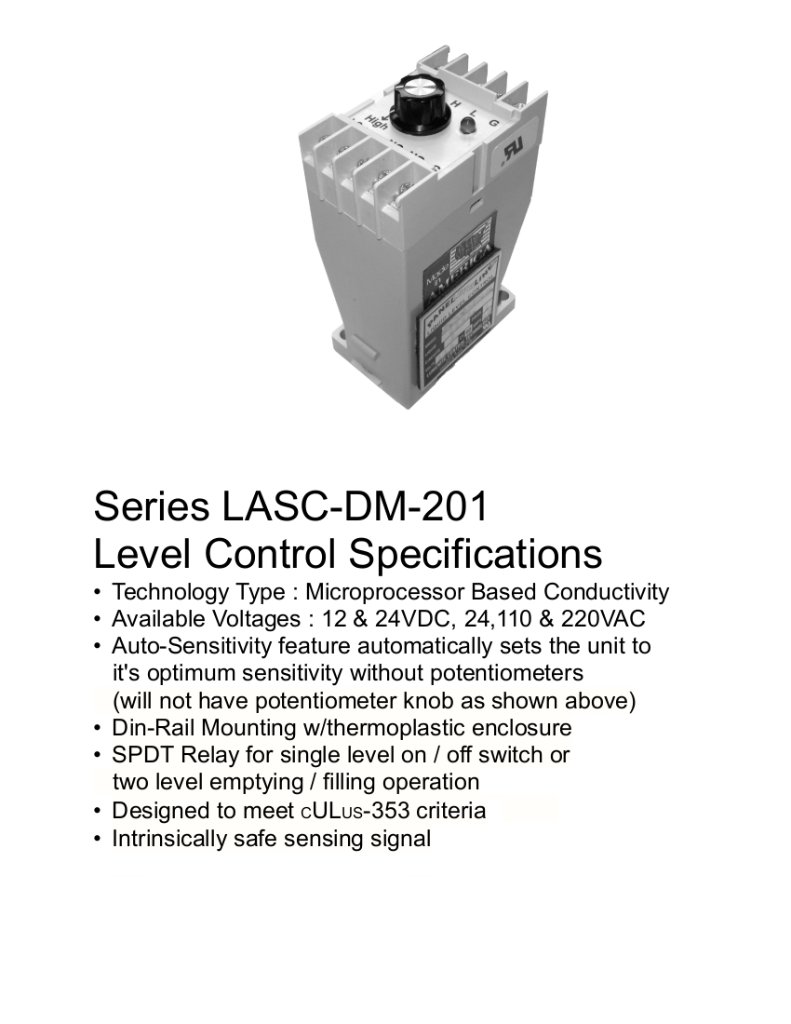

Series LASC-DM-201

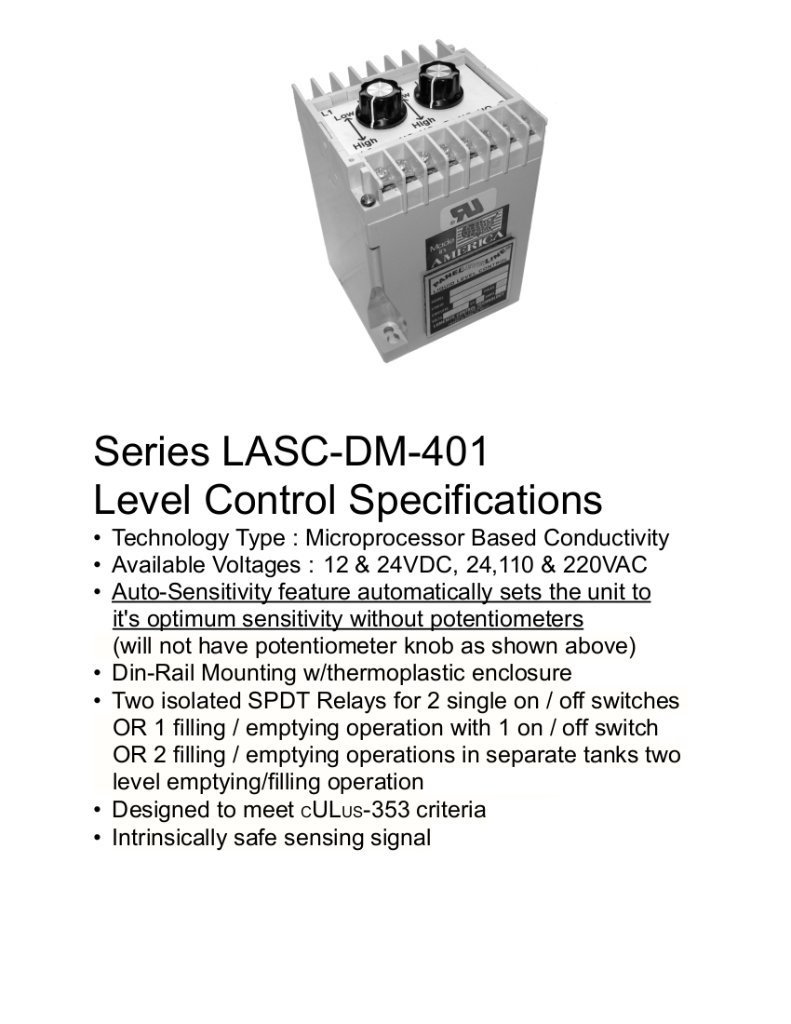

Series LASC-DM-401

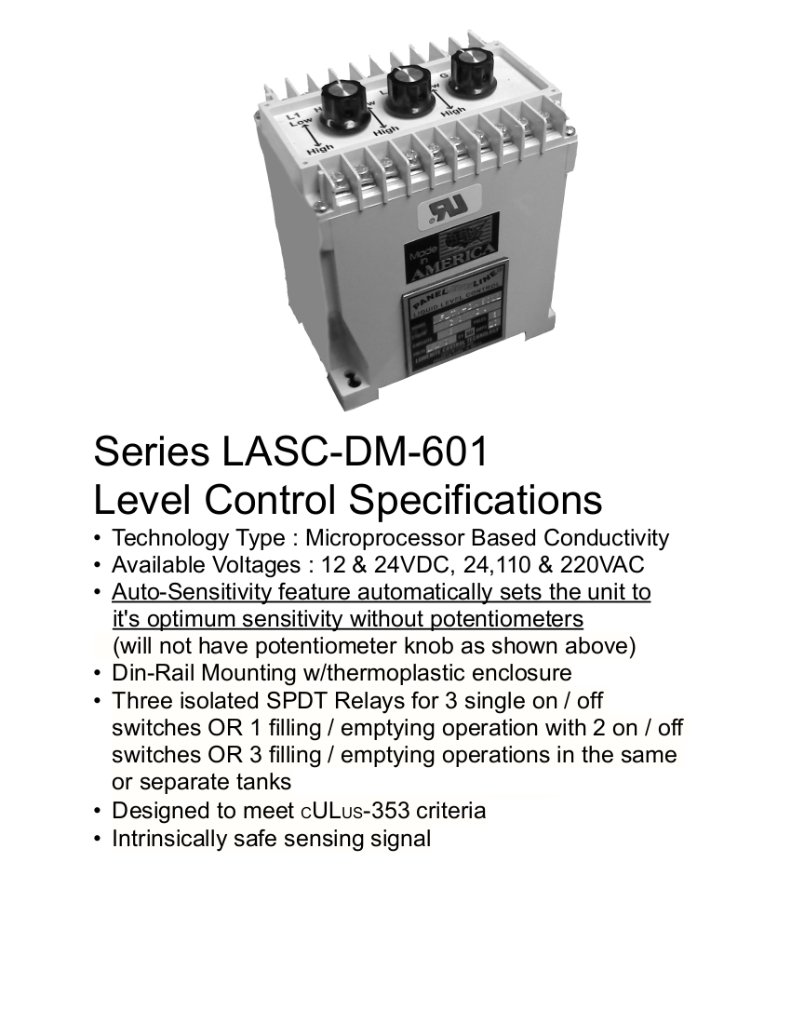

Series LASC-DM-601
Sensitivity
LASC
Auto-Sensitivity / User Specified Range
Mounting Type
DM
Din-rail mount
Relay Configurations
One relay for 1 single on/off switch or 1 filling/emptying operation
Two relays for 2 single on/off switches OR 1 filling/emptying operation with 1 on/off switch OR 2 filling/emptying operations in separate tanks
Three relays for 3 single on/off switches OR 1 filling/emptying operation with 2 on/off switches OR 3 filling/emptying operations in the same or separate tanks
Voltage Options
12VDC
24VDC
110VAC
220VAC
Housing Options (Optional)
NEMA 4x polycarbonate waterproof, corrosion resistant enclosure
NEMA 4x 304 S.S. waterproof, corrosion resistant enclosure
Sample Part Number
LASC - DM - 2011 - PWP
Description: Microprocessor based conductivity level control, din-rail mounting, 110VAC line voltage, polycarbonate waterproof NEMA 4x enclosure, 1 SPDT relay (contacts 10Amps @ 110VAC), dry contacts
Questions About The LASC? Contact Us!
Frequently Asked Questions — LASC Level Controls
What does LASC stand for and what does it do?
LASC stands for Lumenite® Auto-Sensitivity Control. It is a microprocessor-based conductivity level control that automatically sets itself to optimum sensitivity without potentiometers — eliminating manual adjustments for different liquid types.
What mounting style does the LASC use?
The LASC uses Din-Rail (DM) mounting, making it compatible with standard control panel rails. It is available in 201 (1 relay), 401 (2 relay), and 601 (3 relay) configurations.
What voltages is the LASC available in?
The LASC is available in 12VDC, 24VDC, 110VAC, and 220VAC. The voltage is specified in the model number (e.g., LASC-DM-2011 = 110VAC, 1 relay).
What housing options are available for the LASC?
Two NEMA 4x enclosures are available: PWP (polycarbonate, waterproof, corrosion resistant) and SWP (304 stainless steel, waterproof, corrosion resistant) — both rated for harsh environments.
Can the LASC control filling and emptying operations simultaneously?
Yes. The LASC-601 (3-relay) can manage up to three on/off switch points — supporting filling/emptying operations in one or multiple tanks simultaneously with a single control unit.
