Sanitary And Industrial Temperature Transmitter

        Lumenite® temperature transmitters utilize a 3-wire

RTD to provide a continuous temperature reading of any

given liquid in a tank.  The LSTT-4220 Sanitary

Temperature Transmitter has a standard temperature

range of -328˚F to 1,562˚F.  They are 3A listed,  CEE and

TPV (Third Party Verified).

STANDARD SPECIFICATIONS :

- Pre-Calibrated

- Drift Free Digital Linearization

- No Temperature Sensor Effect On Accuracy

- 3 Wire RTD Sensor Input

- All Wetted Parts Highly Polished 304 S.S.

  (316 s.s. available)

- Nema 4x Waterproof, Corrosion Resistant Housing

- Standard Range : =328˚F To 1562˚F

- Temperature programmed to your specifications

- 4-20mA continuous output (can be re-ranged 20-4mA)

- All 304 s.s. housing and probe

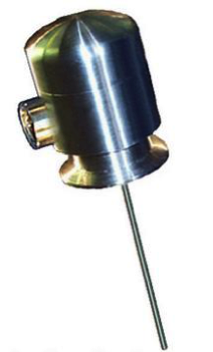

Model

LSTT - 4220

Sanitary & Industrial

Continuous

Temperature

Transmitters

Model

LTW Sanitary /

Industrial

Electropolished

Thermowells

- Thermometer Weld In Design Thermowell

- Thermowell With 1.5" Tri-Clamp Tank Connection,

  9" Insertion Length

- Thermowell With 1.5" Tri-Clamp Tank Connection,

  4" Insertion Length

- Thermowell With 4" Tri-Clamp Tank Connection,

  6" Insertion Length

- All Sanitary / Industrial Thermowells Are 316 s.s.
