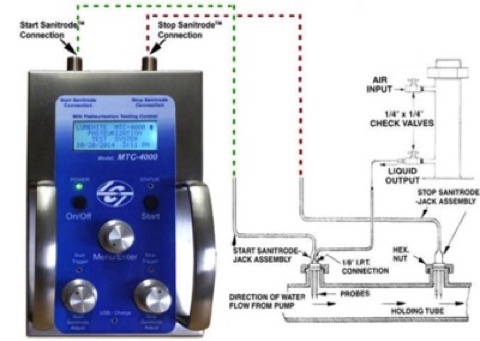

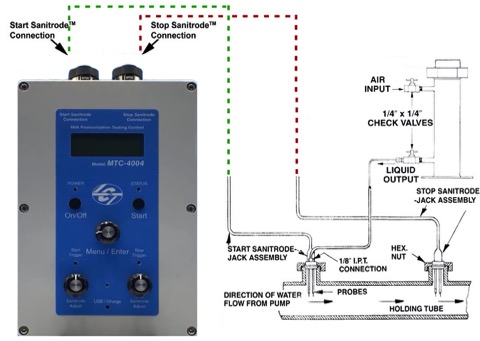

Start and stop probe assemblies are

mounted at 2 different areas on the

pasteurization holding tube.  The top of the

SSI-003 salt injector is attached to a

pressurized air source while the bottom is

attached to the start probe injection nozzle

with high pressure reinforced tubing.

        Once the SSI-001 liquid output valve is

manually opened,  saline solution is injected

into the holding tube which starts the

counter.  When the saline solution reaches

the stop probe,  the counter stops providing

the elapsed time.  The operator can then

run additional tests to satisfy the health

code.

How It Works . . .

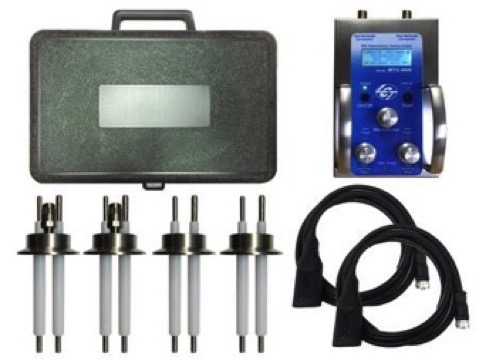

Standard Equipment . . .

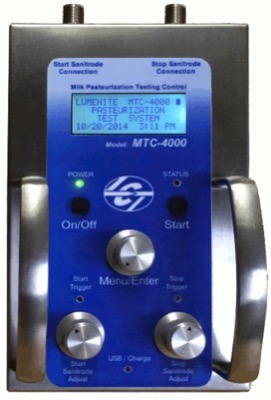

• MTC - 4000 hand held battery operated

milk tester control with auto - calibration/

equalization, USB PC interface, battery

charger cable,  and protective plastic carrier

• 2 - Type 2DCF1.5" tri-clamp Sanitrodes™

(probe assemblies) with two 4" long teflon

insulated probes

• 2 - Type 2DCF2" tri-clamp Sanitrodes™

(probe assemblies) with two 4" long teflon

insulated probes (alternate tri-clamp sizes available (2.5", 3" or 4" caps))

***For alternate probe cap types please consult Lumenite®.

• 2 - Type 2J1.5" jack with 10 feet of cable

(probe to tester connection)

• SSI-003 304 s.s. constructed saline

solution injection apparatus

• Type .25 x .25 3-4 s.s. check valves

• Type 10ft. of reinforced tubing with fitting

for connection to SSI-003

• Universal USB car charger for MTC-4000

• Carrying case designed to hold the

MTC-4000, 6 Sanitrodes™,  2 jacks and

various other accessories

•  Spray Nozzle for Start Probe

(used for connection to SSI injector)

•  Additional Start and Stop probes can be purchased as needed

•  Additional 2J-1.5" milk tester jacks

Optional Accessories . . .
