These tank level sensors are Lumenite®'s solution for 100's of
custom level control operations. Industrialeveline™ controls are totally
customizable with various options to suite your liquid level control
needs. If you don't see your level control operation in the standard list of
controls below doesn't mean we can't make it. Contact us with your
application(s).
SENSITIVITY :
FLT - standard sensitivity (water, soup, vinegar)
FMFT - no foam sensitivity (milk, cream, whey)
FLTV - vable sensitivity (used for a wide range of liquids)
VOLTAGE :
12 - 12 VAC
24 - 24 VAC
1 - 110 VAC
2 - 220 VAC4 - 440 VAC
OPTIONAL ACCESSORIES :
B - bell & silence button
C - auto-off manual selector switch
2C - 2 auto-off manual selector switches
F - bell, light & silence button
MS - magnetic motor starter (specify size & HP of motor)
S - signal light
HOUSING OPTIONS :
PWP - Nema 4x polycarbonate waterproof, corrosion resistant enclosure
SWP - Nema 4X 304 s.s. waterproof, corrosion resistant enclosure

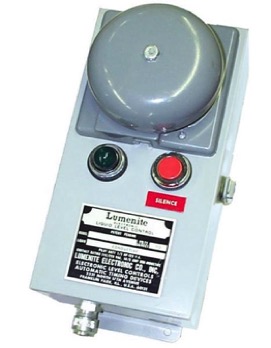

Stand Alone Mount Standard Options
Scroll Down To View
Standard & Special Level
Controls . . .

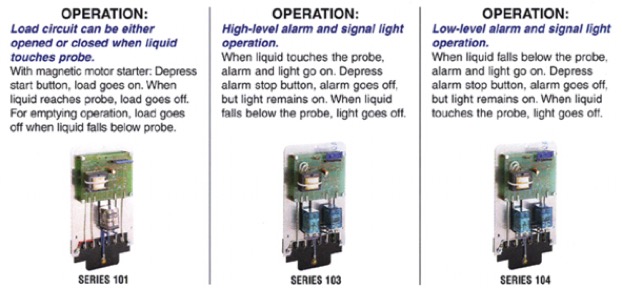

Standard Single Level

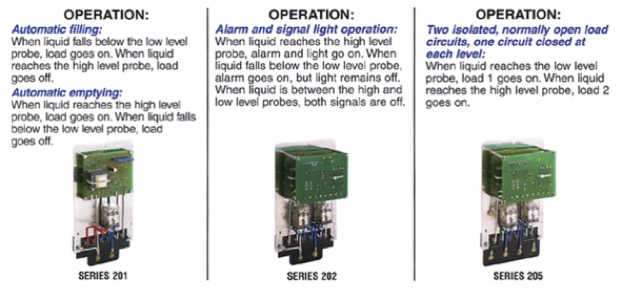

Standard Two Level

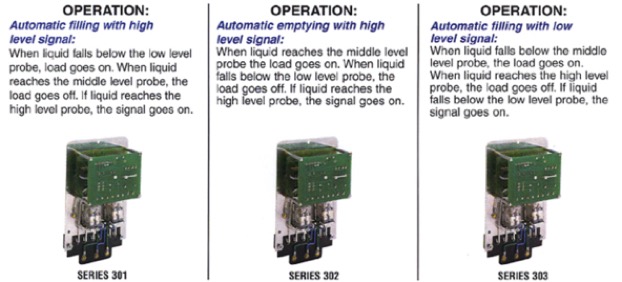

Standard Three Level

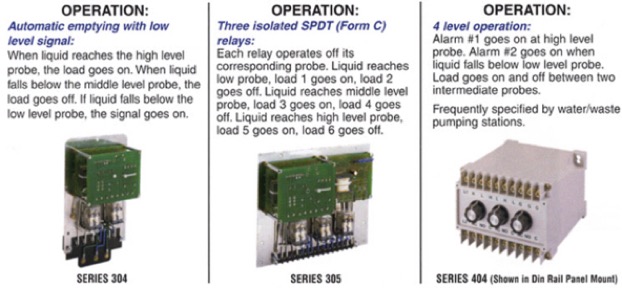

Standard Three & Four Level

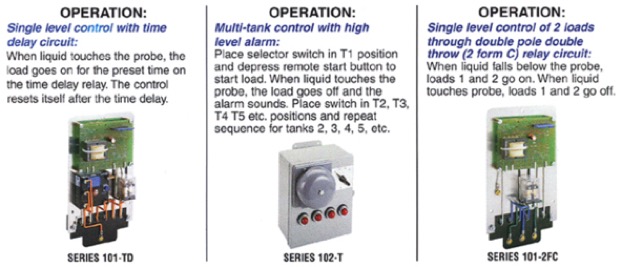

Special Single Level
Special Two Level

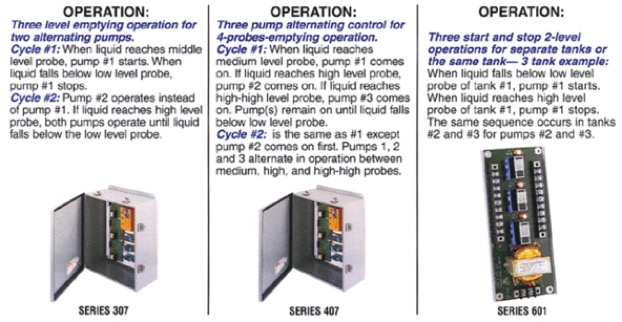

Special Three Level
