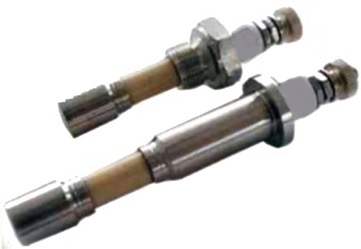

Lumenite®Control Technology, Inc. Brazed Probes are

now available to upgrade and replace Clark-Reliance™

model FG, ZG and T probes.

The brazed technology is well proven with more than 60,000

in service world wide.

Brazed upgrade probes improve steam and water detection

capability, and reduce maintenance and overall operating

costs.

High Integrity Probe Upgrade

•  High density zirconium-wetted insulator improves steam and water detection through minimized contaminant

   build-up and enhanced water shedding

•  Stanless Steel body and tip cut back to elilminate water wicking and false indication

•  Conductivity sensing to 0.25mho through high joint integrity

•  Mechanical interference connection of insulator joint to probe body is cacuum brazed for gas-tight fit

•  Simplified construction using brazed joint eliminates requirement for Belleville™ washers, copper cushion

   washer and critical rod bolt tension preload

•  100% gas tested

•  Hydro tested to 6000psi.

•  Each probe supplied with Monel silver sealing gasket

•  Two-year warranty

•  Ten-year expected life

"Once And You're Done"

Simultaneous Temperature / Pressure

rating Of 3,000 psi @ 1200˚F.
